SPF290AS

SPF290AS

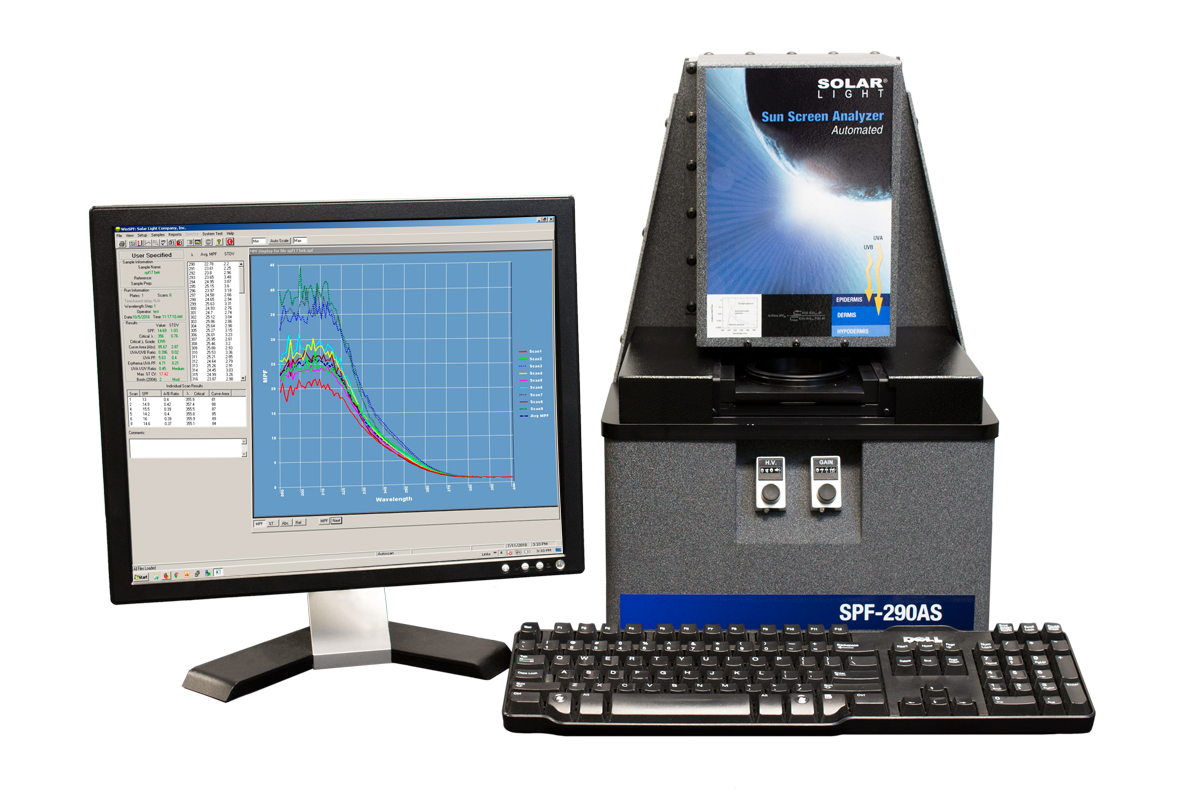

MODEL SPF-290AS AUTOMATED UV TRANSMITTANCE / SPF ANALYZER DOWNLOAD
DESCRIPTION

Solar Light’s versatile SPF-290AS UV Transmittance / Sunscreen Protection Factor Analyzer is an integrated turnkey UV spectrophotometer, designed and optimized for the determination of SPF values on a variety of sunscreen and cosmetic products, as well as materials testing. This self-contained, attractive desktop unit reduces the need and associated cost for in-vivo testing. Covering both the UVB and UVA spectral regions, the system automatically scans from 290 to 400 nm, accumulating and storing data at intervals of 1, 2, or 5nm. The monochromatic protection factor (MPF) is determined for each of the selected wavelengths, and is used to calculate the SPF value, using solar irradiance and erythemal constants that are programmed into the software (but which can be easily modified.)

The SPF-290AS is the perfect choice for quick, efficient, and accurate analysis of:
  • Liquids
  • Lotions
  • Creams
  • Sprays
  • Gels
  • Powders
  • Emulsions
  • Textiles
TECHNICAL DETALIS
  • Wavelength Range:

    290 – 400 nm (range specified by international methods)

  • Wavelength Accuracy:

    0.2% (0.58 nm – 0.80 nm)

  • Wavelength Reproducibility:

    0.25 nm

  • Spectral FWHM Bandwidth:

    1.66 nm

  • Absorbance:

    0 – 3.2 A (Dual Doped PMMA Method)

  • SPF Measurement Range:

    1 – 100+

  • Scan Time:

    As little as 24 seconds

  • Wavelength Step Interval:

    1 nm, 2 nm, or 5 nm. User selectable.

  • Lamp:

    Power stabilized Xenon CW125 W (operated at 75 W)

  • Detector:

    High Sensitivity Multialkali side-on PMT

  • Sample Positioning:

    Automated X-Y Stage

  • Power Options:

    110V AC, 60 Hz or 220V AC, 50 Hz

  • Current Methods Include:
    • COLIPA / ISO in-vitro method for UVA-PF/SPF ratio (for EU labeling)
    • Critical Wavelength Boots Star Rating (for EU Labeling)
    • FDA Critical Wavelength Monograph (for US Labeling)
    • UPF: To All Major Worldwide Standards: AATCC 183, BS EN 13758-1, GBT18830-2009, and NZS 4399
    • SPF Values: Australian TNUV Standards
    • UVA/UVA+B and Erythemal Protective Factor Calculations
    • ISO: 24443 Untreated substrate measurement and data storage

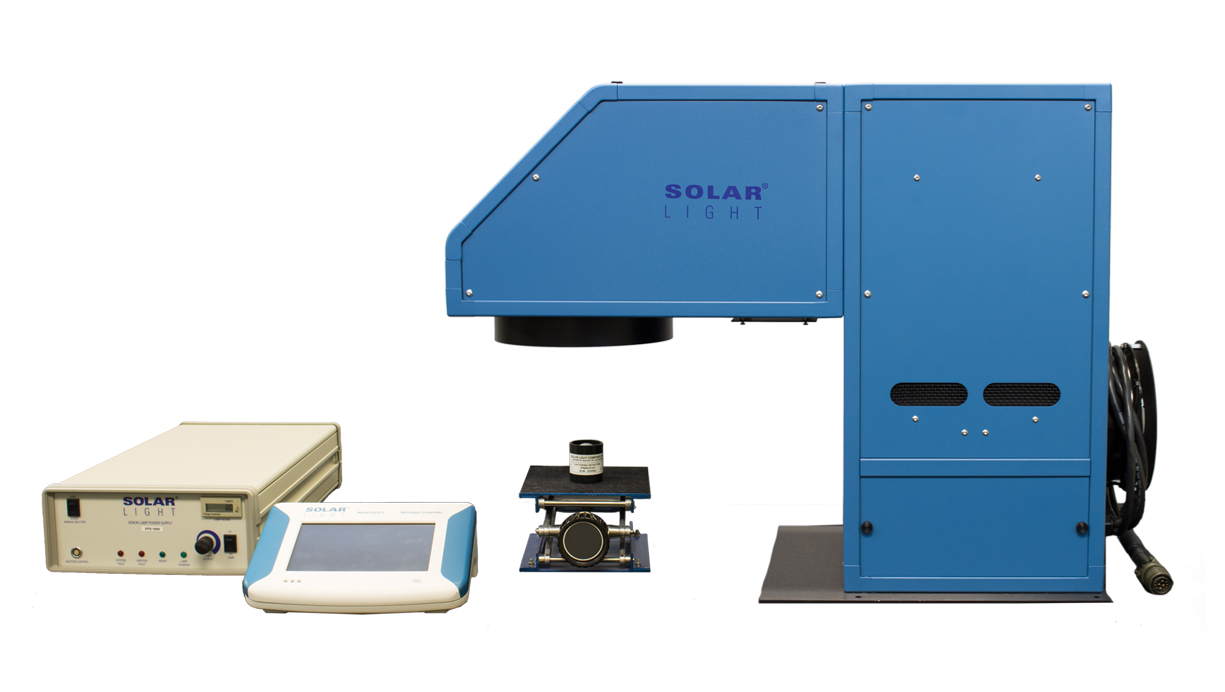

4” (10 cm) Square Beam 1000W UV Solar Simulator Model LS1000-4S-UV

4” (10 cm) Square Beam 1000W UV Solar Simulator Model LS1000-4S-UV
LITERATURE

UV SOLAR SIMULATOR • LS1000-UV LITERATURE

DOWNLOAD
QUICK START GUIDE (국문)

LS1000-SERIES UV QUICK START GUIDE (국문)

DOWNLOAD
DESCRIPTION

Solar Light’s state of the art 1000W single output LS1000-4S-UV Solar Simulator produces solar UV radiation in the 290-400nm range, and can be quickly and easily configured by the user to provide UVA only, UVB only, UVA+B, or full spectrum sunlight optionally. With 98% uniformity available in the 4″ (10 cm) square beam’s central usable area, these precision research-grade instruments are specifically designed to comply with the latest laboratory standards such as ASTM, IEC, and ISO. These units can reliably produce UV levels several times stronger than tropical sun without any of the associated heat load, which is ideal for measuring the damaging effects of UV during materials testing.

TECHNICAL DETALIS
  • Applications:

    Our state of the art single output LS1000- Series Solar Simulators produce solar UV radiation in the 290-400nm range, and can be quickly and easily configured by the user to provide UVA only, UVB only, UVA+B, or full spectrum sunlight optionally.

  • Kit Includes:

    -

  • Spectral Output:

    -

  • Output Beam Size:

    4” (10 cm) Square

  • Beam Orientation:

    Vertical Downward, Vertical Upward, or Horizontal (for all models - please specify at order)

  • Lamp Type:

    Xenon Short Arc (For All Models)

  • Lamp Wattage (Nominal):

    1000W (For All Models)

  • Beam Uniformity:

    ±5% (For All Models)

  • Collimation:

    ±1.5-3 Degree Half Angle (For All Models)

  • Spectral Match Classification:
    • A (IEC 60904-9 2007)
    • A (JIS C 8912)
    • A (ASTM E927 - 05)
  • Temporal Instability Classification:
    • A (IEC 60904-9 2007)
    • A (JIS C 8912)
    • A (ASTM E927 - 05)
  • Uniformity Classification:
    • B (IEC 60904-9 2007)
    • B (JIS C 8912)
    • B (ASTM E927 - 05)
  • Light Ripple:

    < ±2% rms

  • Working Distance:

    5.0” ±2.0” (12.7 cm +/- 5.2 cm)

  • Long Term Drift (<4 Hours):

    Near Zero

  • Line Regulation:

    <0.2% of maximum output current

  • Current Regulation:

    <0.5% of maximum output current

  • Current Ripple:

    <0.5% of maximum output current

  • Power Limit:

    Factory Set Limit is 1,500 watts max

  • Operating Temperature:

    32°F to 104°F / 0°C to +40°C

  • Storage Temperature:

    -4°F to 185°F / -20°C to +85°C

  • Humidity:

    0 to 95% non-condensing

  • Cooling:

    Forced air

  • Medical Safety Certifications:

    EN61010-1 Laboratory, EN60335 Appliances, IEC60601-1 Medical

  • EMI/EMC:

    EN55011 Emissions, IEC60601-1-2:2001, 2nd Rev 2 Medical, IEC61000-3-2 Harmonic, IEC61000-3-3 Flicker, IEC61000-4-2 ESD, IEC61000-4-3 Radiated, IEC61000-4-4 EFT, IEC61000-4-5 Surge, IEC61000-4-6 Conducted, IEC61000-4-11 Voltage Dip, IEC61000-4-8 Magnetic Field

  • Weight:

    45 lbs. (20.5 kg.)
